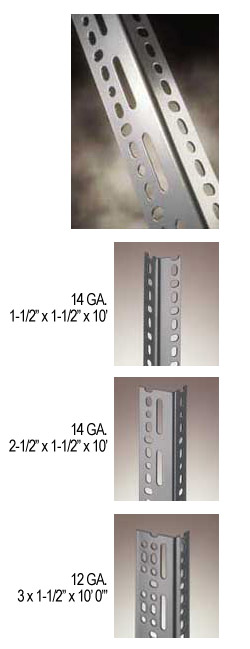

Slotted Angle

Tri-Boro slotted angle helps you build an efficient framing system for a variety of uses from machine guards to hand rails. Slotted Angle is the most versatile, time and cost effective construction material available for building carts, ladders, benches, shelving, cases, racks or any other type of structure. Made of either 12 or 14 gauge roll-formed steel. Slotted Angle is finished in Gray Powder Coat Enamel or corrosion resistant galvanized finish.

Easy to use... Just measure, cut and bolt together.

  • Scientifically designed pattern of holes and slots are perfectly positioned for bolting pieces together at various angles without needing to drill holes.
  • No special tools required but our slotted angle cutter cuts completely through with one fast easy stroke.
  • Prime, cold rolled steel with painted or hot dipped, rust-resistant, galvanized finish.
  • Available in 96”, 120” and 144” lengths in 14 gauge and 12 gauge steel.
  • Each standard order includes 75 count box of 5/16” x 5/8” hex cap screws with nuts. These heavy duty bolts and nuts assure a strong structure for years of use.
  • 100% reusable. Even short pieces of angle can be used as a cleat to join together angle lengths into longer ones.
  • Old outmoded structures can be unbolted and reassembled into new ones.

14 Gauge - For Average Jobs
Cold-rolled high strength steel - recommended when extreme load are not required

  • Nominal size 1-1/2" x 1-1/2" and 1-1/2" x 2-1/2"
  • Available in 8', 10' and 12' lengths, painted or galvanized
  • Packaged 10 pieces per bundle
Painted
Model No.		 Galvanized
Model No.		 Gauge Size Pieces
Per Bundle
SA15158 SA15158GAL 14 1-1/2” x 1-1/2” x 8’ 10
SA151510 SA15158GAL 14 1-1/2” x 1-1/2” x 10’ 10
SA151512 SA151512GAL 14 1-1/2” x 1-1/2” x 12’ 10
SA25158 SA25158GAL 14 1-1/2” x 2-1/2” x 8’ 10
SA251510 SA251510GAL 14 1-1/2” x 2-1/2” x 10’ 10
SA251512 SA251512GAL 14 1-1/2” x 2-1/2” x 12 10

12 Gauge – For Heavy Duty Jobs
Heavier weight cold-rolled high strength steel – recommended for use when greater strength and carrying capacity is required.

  • Nominal size 3” x 1 1/2”
  • Available in 8’, 10’ and 12’ lengths, painted or galvanized
  • Packaged 10 pieces per bundle
Painted
Model No.		 Galvanized
Model No.		 Gauge Size Pieces
Per Bundle
SA30158 SA30158GAL 12 1-1/2” x 3” x 8’ 10
SA301510 SA30158GAL 12 1-1/2” x 3” x 10’ 10
SA301512 SA301512GAL 12 1-1/2” x 3” x 12’ 10

Slotted Angle Accessories

Slotted Angle Cutter Slotted Angle Cutter
Model Number Weight
SAC 981 14 lbs
*Standard Color Is Red

Gussett Plates Gusset Plates
• Galvanized steel corner plates give added rigidity and strength.
• 14 gauge cold rolled steel measures 6” x 6”
• 10 pieces per package.



Gussett Plates

Casters
• Use heavy duty casters with slotted angle to make special trucks and carts.
• Available as swivel, swivel with brake, and rigid.
• 5” x 1 1/4” casters are rated at 250 pounds each.

Model Number Size Wt.
CS (Swivel Caster) 5” x 1-1/4” 2.0
CSL (Swivel Caster w/ Side Brake) 5” x 1-1/4” 2.0
CR (Rigid Caster) 5” x 1-1/4” 2.0


Slotted Angle
